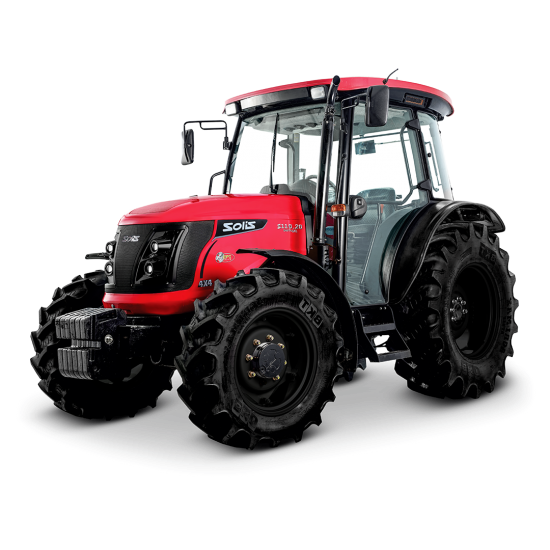

Solis 110.20 Cabin
Solis
110.20 Cabin
Dynamic Force, Flawless Execution
The Power Of Superior Technology
Experience innovation in motion with Solis 110.20 CABIN tractor. Unleash the power with its 4-Cylinder Turbocharged Engine. Equipped with Factory Fitted Front Weights and Twin Projector Lamps, this tractor redefines style and functionality.

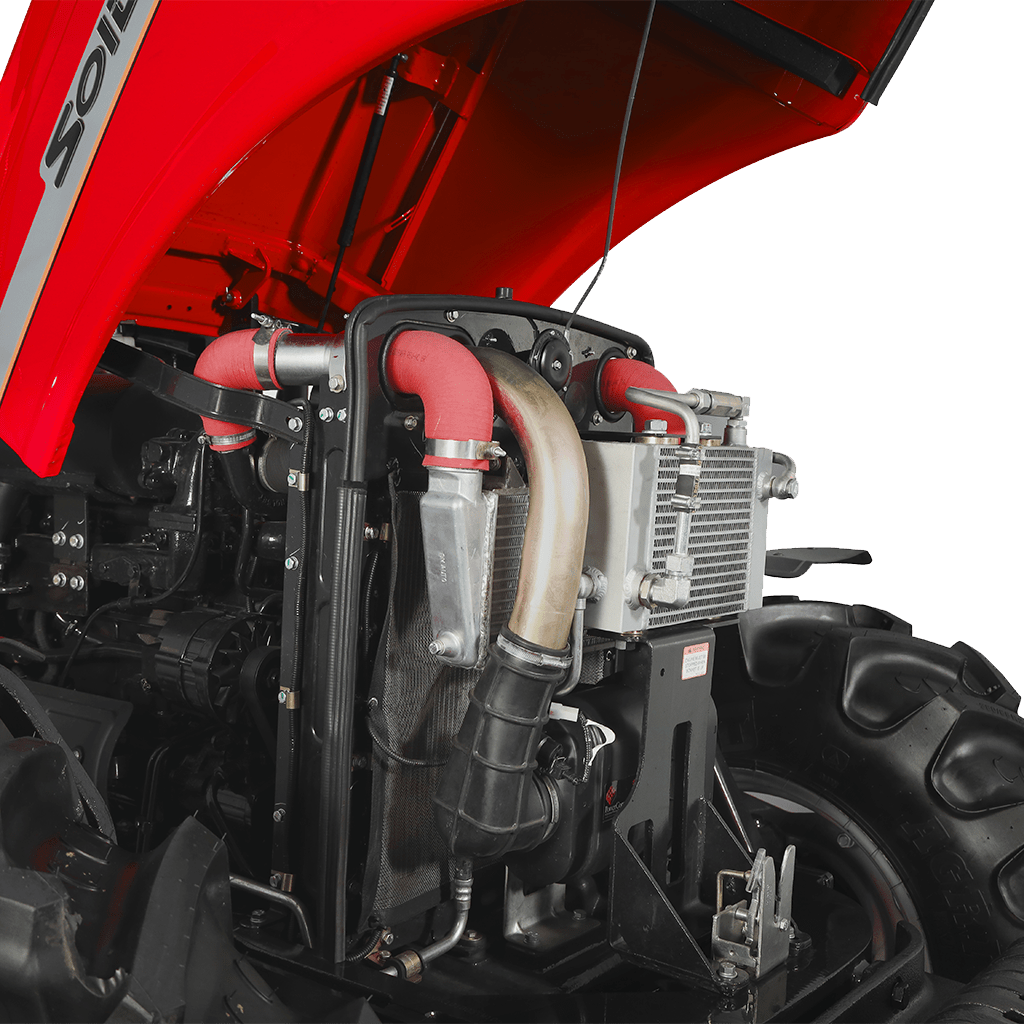

4 CYLINDER TURBOCHARGED WITH INTERCOOLER ENGINE
EASY SUPER SYNCHRO 12F+12R GEARBOX
SYNCHROMESH SHUTTLE TRANSMISSION
ADVANCE AERODYNAMIC STYLING
Technical Specifications
| ENGINE | |
| HP Category | 110 HP |
| No. of Cylinders | 4 |
| Displacement cc | 4087 |
| Aspiration | Turbocharged with Intercooler |
| Bore/Stroke (mm) | 105/118 |
| Rated RPM | 2200 |
| Air Cleaner | Dry Air Cleaner |
| Max Torque | 430@1300 |
| TRANSMISSION | |
| Drive | 4WD |
| Clutch | Double Clutch |
| Gearbox | 12F+12R |
| Transmission | Synchromesh Shuttle Transmissio |
| SPEED (FORWARD) | |
| Min Speed (km/h) | 1.67 @ 2200 ERPM |
| Max Speed (km/h) | 34.86 @ 2200 ERPM |
| Driver Seat | Mechanical Suspension |
| BRAKES | |
| Brakes | Wet Disc Brakes |
| Hand Brake | Mechanical |
| Type of Actuation | Hydraulic Assisted Brakes |
| DIFFERENTIAL LOCK | |
| Differential Lock | Mechanical (Foot Operated) |
| PTO | |
| PTO (RPM) | 540/540E 540/100 (Optional) |
| PTO (Actuation) | Mechanical |
| STEERING | |
| Steering | Power |
| ELECTRICAL | |
| Battery | 12V, 110Ah |
| Alternator | 12V, 90Amp |
| Seven Pin Trailer Socket | Standard |
| HYDRAULICS | |
| Position Contro | Standard |
| Automatic Draft Control | Standard |
| 3 Point Linkage | Standard |
| Lifting Capacity (Kg) | 3500 |
| Auxiliary Hydraulic Circuit | 2DA / 2SA |
| SAFETY SWITCH | |
| Neutral Safety Switch | Standard |
| P.T.O Safety Switch | Standard |
| Clutch Safety Switch | Standard |
| CAPACITY (LTRS)(+/-5%) APPROX | |
| Fuel Tank (Ltr.) | 117 |
| TURNING RADIUS IN (m) | |
| Without Brakes | 6.2 |
| TYRE | |
| Tyres | Front: 380/85R24 Rear: 460/85R34 |
| DIMENSION & WEIGHT (+/-5%) | |
| Gross Weight (Kg) | 4315 |
| Wheel Base (mm) | 2375 |
| Overall Length (mm) | 4350 |
| Overall Width (mm) | 2180-4350 |
| Height (mm) | 2815 |
| Min. Ground Clearance (mm) | 430 |
| Front Track, (mm), min.-max. | 1762 |
| Rear Track, (mm), min.-max | 1724 |
| OTHERS | |
| Fuel Indicator Gauge | Standard |
| Registration Plate with Light | Standard |
| Front Tow Hook | Standard |
| Front & Rear Weights | 72 Kg Base Weight+ 31*8 Rear – 40×1(Each Wheel) |
| Drawbar | Standard |
| ROPS | Standard |
| Canopy | Optional |
| Cabin | Optional |
| OPTIONAL FEATURES | |
| Front Mudgaurd | Standard |
| Additional Weight Optional | Front: 2×31 Kg Rear: 40×1 Each Wheel | 40×2 Each Wheel |
| Trailer Brake | HTB |
