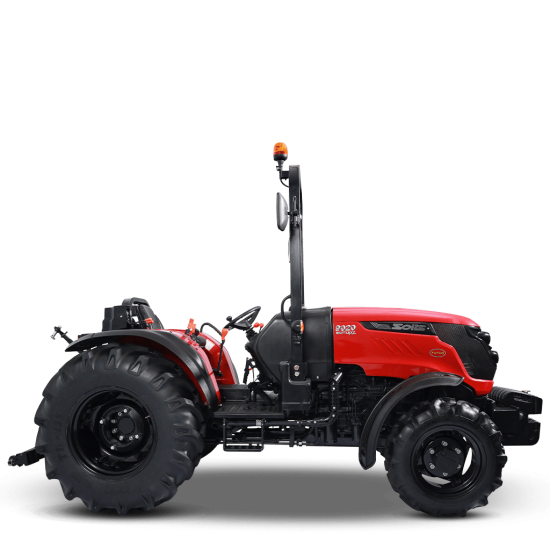

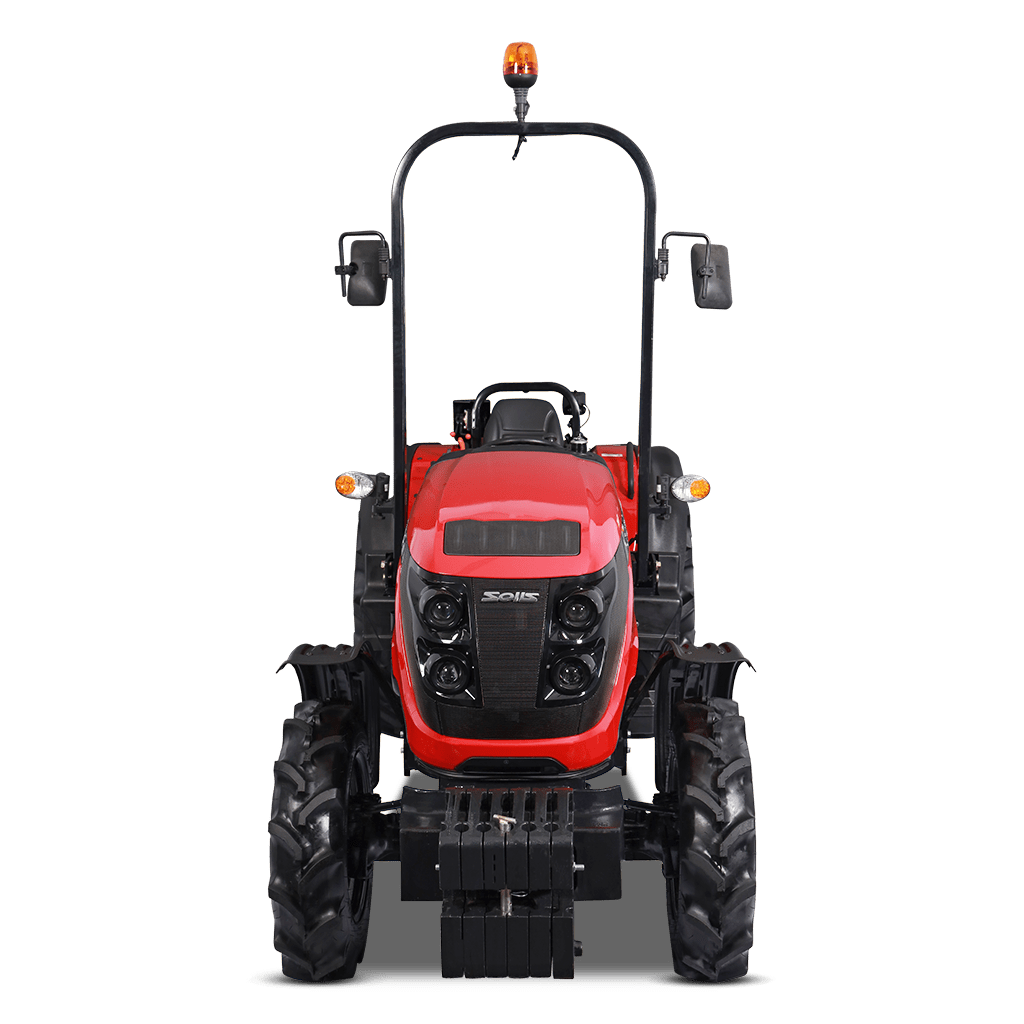

Solis 9020 NT
Solis
9020 NT
Unyielding Power, Supreme Performance
The Power Of Superior Technology
Experience the future of farming with Solis 9020NT! Experience the toughest as it redefines style by boasting a robust 4-Cylinder Turbocharged Engine and Twin Projector Lamps.
HEAVY DUTY 4 CYLINDER TURBOCHARGED ENGINE
EASY SUPER SYNCHRO 12F+12R GEARBOX
SYNCHROMESH SHUTTLE TRANSMISSION
ADVANCE AERODYNAMIC STYLING
Technical Specifications
| ENGINE | |
| Engine Type | 4 Cylinder Turbocharged |
| HP Category | 90 |
| Emission | Stage 3A |
| No. of Cylinders | 4 |
| Aspiration | Turbocharged |
| Cubic Capacity (cc) | 4087 |
| Rated RPM | 2000 |
| Air Cleaner | Dry Air Cleaner with Clogging Sensor |
| Max Torque (Nm) | 360@1300 (Stage 3A) |
| Exhaust | Underhood Downdraft Towards the Floor |
| TRANSMISSION | |
| Drive | 4WD |
| Clutch | Double Clutch |
| Gearbox | 12F+12R |
| Front Axle | 4WD |
| Transmission | Synchromesh Shuttle Transmission with Creeper |
| SPEED (FORWARD) | |
| Maximum Speed (Km/Hr) | 28.27 @ 2000 ERPM |
| Minimum Speed (Km/Hr) | 0.46 @ 2000 ERPM |
| BRAKES | |
| Brakes | Oil Immersed Brake |
| Type of Actuation | Mechanical |
| Parking Brake | Independent Type |
| DIFFERENTIAL LOCK | |
| Differential Lock | Yes, Foot Operated |
| PTO | |
| PTO (RPM) | 540/540E |
| PTO (Actuation) | Mechanical |
| STEERING | |
| Steering | Power |
| ELECTRICAL | |
| Battery | 12V, 85Ah |
| Alternator | 12V, 90Amp |
| Seven Pin Trailer Socket | Yes |
| HYDRAULICS | |
| 3 Point Linkage | CAT-II |
| Stay Bars | Standard |
| Hydraulic Lifting Capacity (Kg) | 2500 |

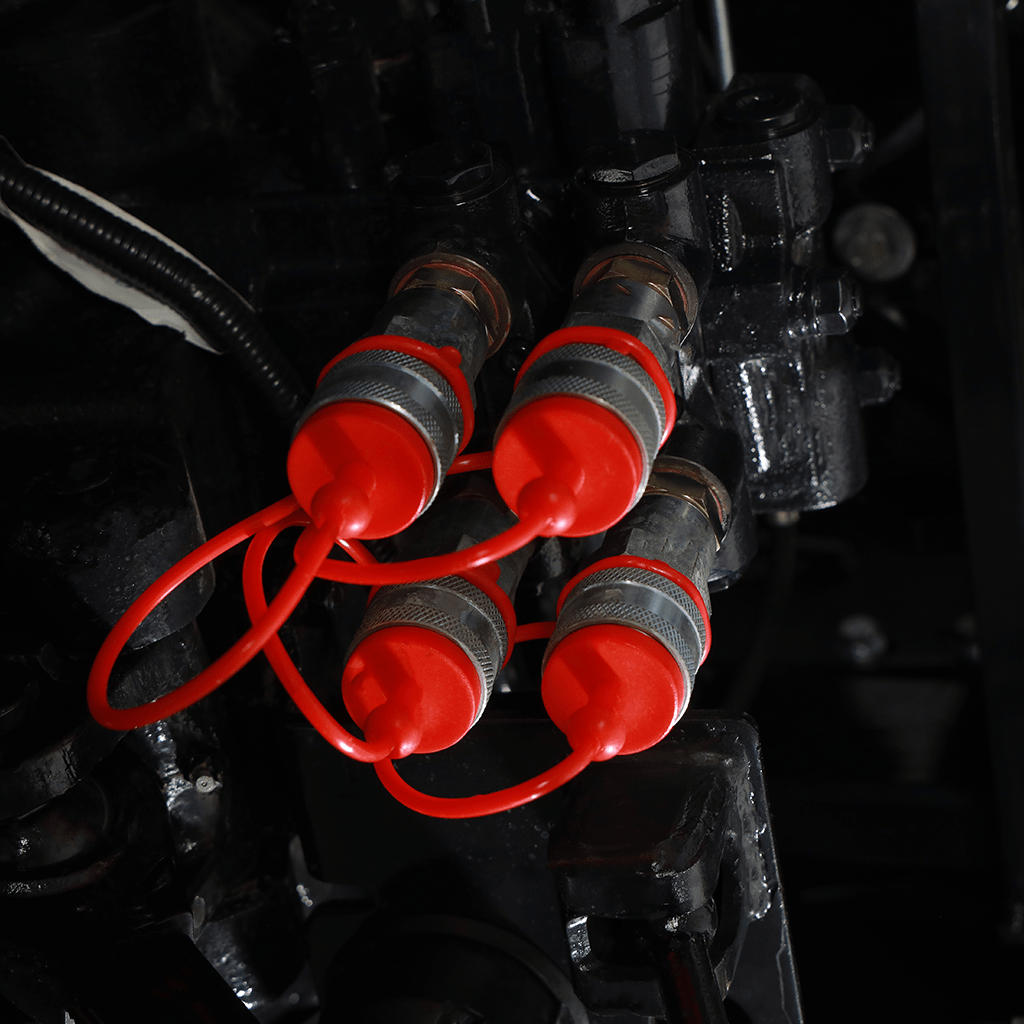

| Auxiliary Hydraulic Circuit | 2DA/2SA/3DA (Optional) |
| SAFETY SWITCH | |
| Clutch Safety Switch | Standard |
| PTO Safety Switch | Standard |
| Neutral Safety Switch | Standard |
| CAPACITY (Ltrs.) (+/-5%) | |
| Fuel Tank (Ltr.) | 73 |
| TURNING RADIUS | |
| Without Brakes (m) | 4.58 |
| TYRE | |
| TYRE | |
| Front | 8-18 |
| Rear | 14.9-24 |
| DIMENSION & WEIGHT (+/-5%) | |
| Weight (Kg) | 2735 |
| Wheel Base (mm) | 2307 |
| Overall Length (mm) | 4252 |
| Overall Width (mm) | 1475-1606 |
| Min. Ground Clearance (mm) | 256 |
| Front Track (mm) | 1150-1286 |
| Rear Track (mm) | 1082-1213 |
| OTHERS | |
| Fuel Indicator Gauge | Standard |
| Front Tow Hook | Standard, Inbuilt in Front Weights |
| Front Weights with Std. Ballast | Front-72 Kg + 6×31 Kg Front Removal Weight. / Rear 1*30 Kg At Each Wheel |
| Trailer Hitch | Swinging Drawbar |
| Front Mudguard | Standard |
| OPTIONAL FEATURES | |
| Cabin | HVAC |
| Tyres 4WD 2WD |
1) Front Tyre: 260/70R16 | Rear Tyre: 360/70R24 2) Front Tyre: 280/70R18 | Rear Tyre: 360/70R28 3) Front Tyre: 280/70R18 | Rear Tyre: 420/70R24 4) Front Tyre: 6.5×16 | Rear Tyre: 360/70/R28 5) Front Tyre: 6.0×16 | Rear Tyre: 360/70/R24 6) Front Tyre: 6.5×16 | Rear Tyre: 420/70R24 |
