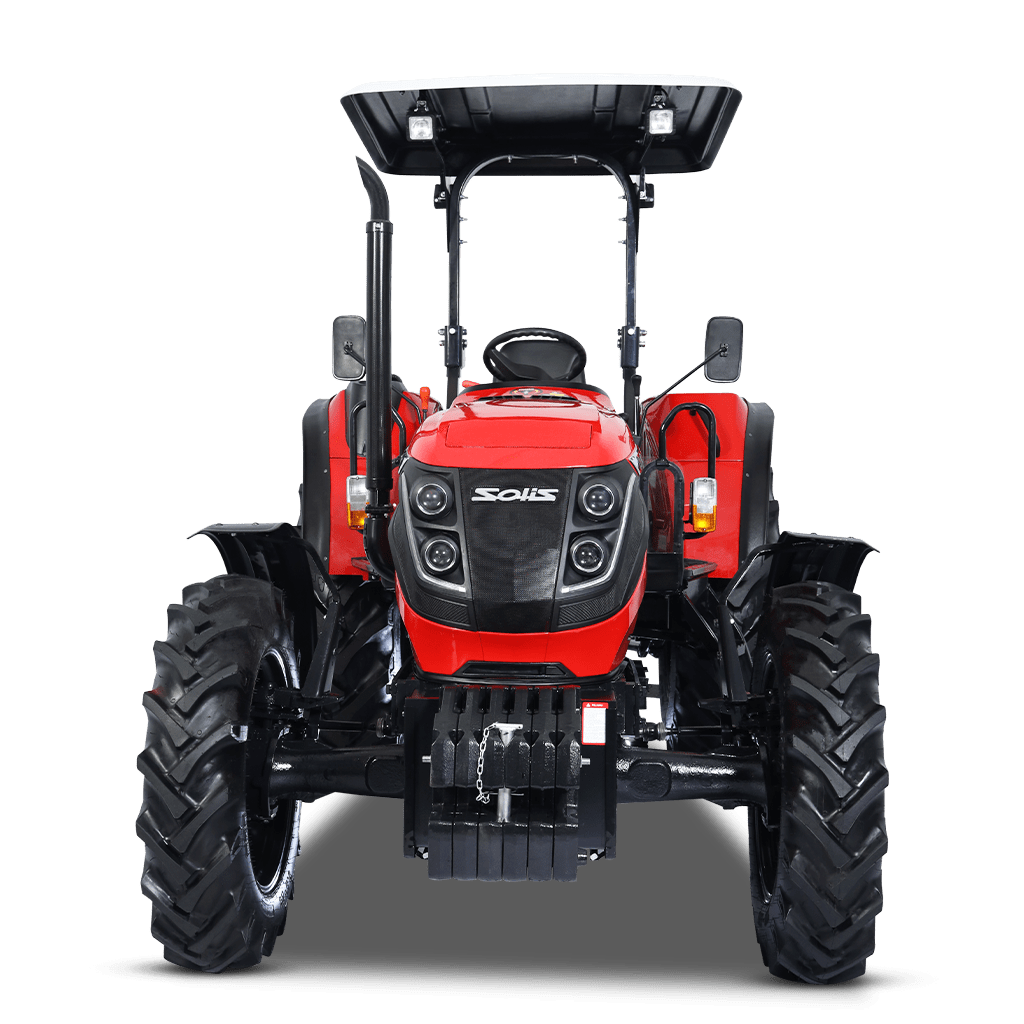

Solis 6020
Solis
6020
Remarkable Prowess, Unchanging Reliance
The Power Of Superiore Technology
Discover the power of innovation with Solis 6020! Equipped with cutting-edge features, including factory-fitted front weights, a robust 4-cylinder natural aspirated engine, synchro shuttle transmission, and a hydraulic lifting capacity of up to 2500KG (optional 3000KG)
HEAVY DUTY 4 CYLINDER, NATURAL ASPIRATED DIESEL ENGINE
EASY SUPER SYNCHRO 12F+12R GEARBOX
SYNCHROMESH SHUTTLLE TRANSMISSION
ADVANCE AERODYNAMIC STYLING
Technical Specifications
| ENGINE | |
| Engine Type | 4 Cylinder, Natural Aspirated Diesel Engine |
| HP Category | 60 |
| No. of Cylinders | 4 |
| Aspiration | Natural |
| Cubic Capacity (cc) | 3707 |
| Rated RPM | 2200 |
| Air Cleaner | Dry Air Cleaner with Clogging Senso |
| Cold Start | Standard |
| Max Torque (Nm) (+/- 5% ) | 230@1200 ERPM |
| Exhaust | Underhood Updraft |
| TRANSMISSION | |
| Drive | 4WD |
| Clutch | Double Clutch |
| Gearbox | 12F+12R |
| Transmission | Synchromesh Shuttle Transmission |
| SPEED (FORWARD) | |
| Maximum Speed (Km/Hr) | 32.95@2200 ERPM |
| Minimum Speed (Km/Hr) | 1.56@2200 ERPM |
| BRAKES | |
| Brakes | Oil Immersed Brakes |
| Type of Actuation | Mechanical |
| Parking Brake | Independent Type |
| DIFFERENTIAL LOCK | |
| Differential Lock | Standard, Foot Operated |
| PTO | |
| PTO (RPM) | 540 / 540E (Standard) |
| PTO (Actuation) | Mechanical |
| STEERING | |
| Steering | Power |
| ELECTRICAL | |
| Battery | 12V, 88 AH or 110 AH |
| Alternator | 12V, 36 Amp (90 Amp |
| Seven Pin Trailer Socket | Standard |
| HYDRAULICS | |
| 3 Point Linkage | CAT-II |
| Stay Bars | Adjustable |
| Hydraulic Lifting Capacity (Kg) | 2500 (3000 Optional) |
| Auxiliary Hydraulic Circuit | 2DA/2SA |
| Lift Rods | Standard |
| SAFETY SWITCH | |
| Clutch Safety Switch | Standard |
| PTO Safety Switch | Standard |
| Neutral Safety Switch | Standard |
| CAPACITY (LTRS)(+/-5%) | |
| Fuel Tank (Ltr.) | 65 |
| TURNING RADIUS | |
| Without Brakes (m) | LHS: 5.65, RHS: 5.74 |
| TYRE | |
| Front | 9.5*24 |
| Rear | 16.9*28 |
| DIMENSION & WEIGHT(+/-5%) | |
| Weight (Kg) | 3265 |
| Wheel Base (mm) | 2360 |
| Overall Length (mm) | 3970-4270 |
| Overall Width (mm) | 1650-1935 |
| Height (mm) up to ROPS | 2680 |
| Min. Ground Clearance (mm) | 370 |
| Front Track (mm) | 1560 |
| Rear Track (mm) | 1500 |
| OTHERS | |
| Fuel Indicator Gauge | Standard |
| Front Tow Hook | Standard, Inbuilt in Front Weight |
| Front & Rear Weights with Std. Ballast | Front- 30KgX2 and 25KgX4 Rear- 2X30 Kg (One on each Rear Wheel) |
| Trailer Hitch | 1) Swinging Drawbar (Standard) |
| 2) Swinging Drawbar + Rotating Hook (Optional) | |
| 3) Ladder Type Automatic Hitch | |
| Cabin | Optional |
| OPTIONAL FEATURES | |
| Front Mudguard | Optional |
| Trailer Brake | HTB/ATB |
| 2WD | Front: 7.5X16, Rear 16.9X30 |
| Radial | 9.5×24 & 16.9×30 |
| 11.2×24 & 16.9×30 | |
| PTO | 540/1000 |
